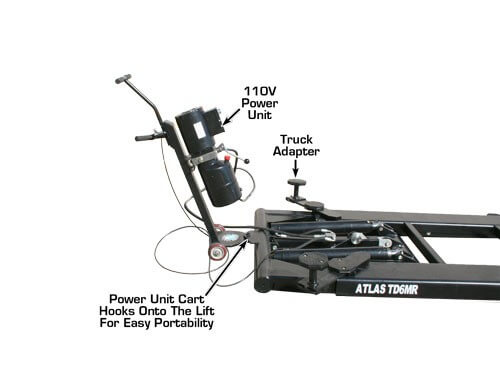

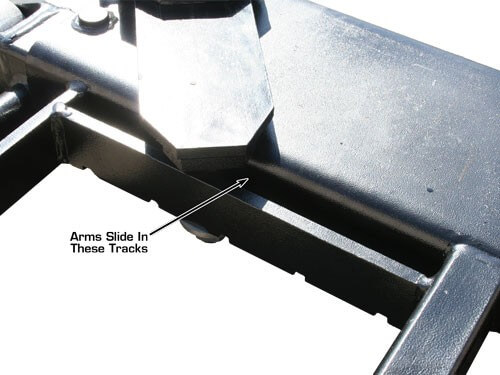

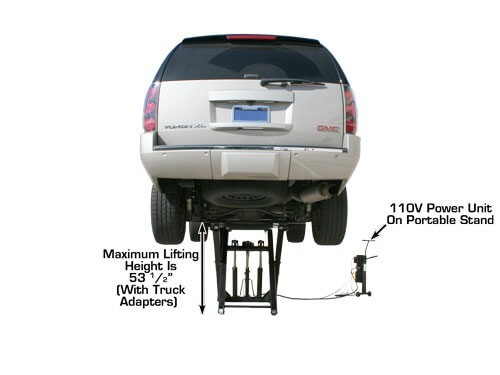

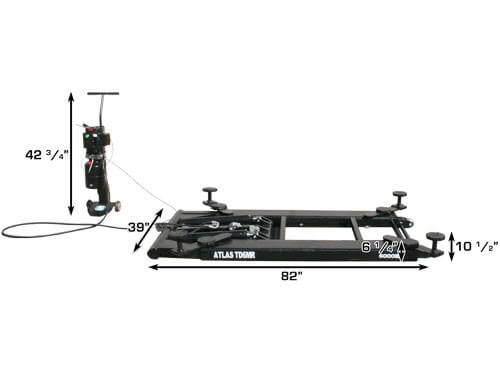

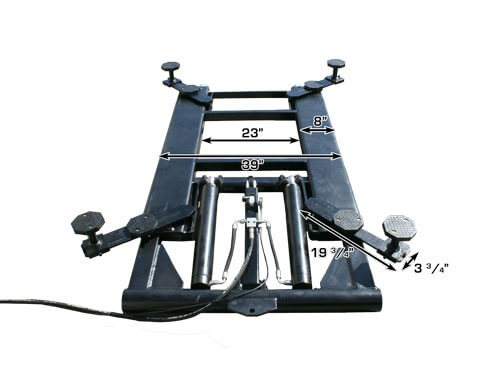

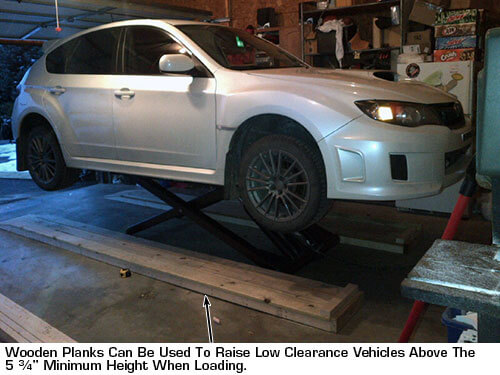

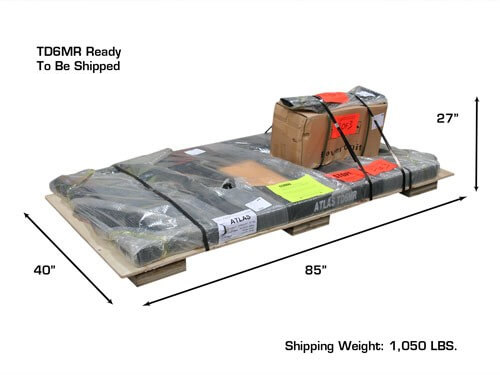

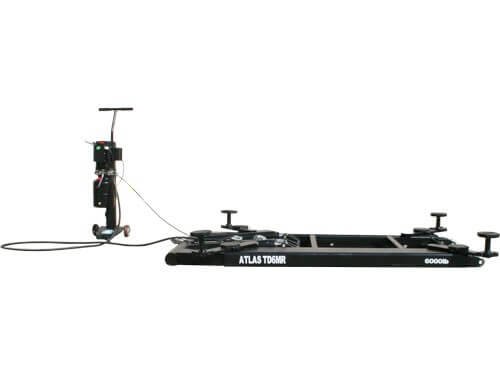

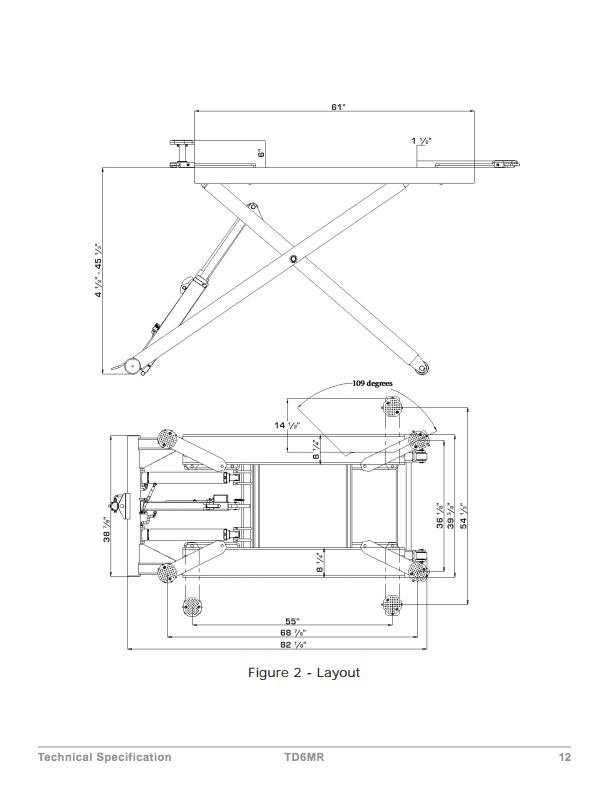

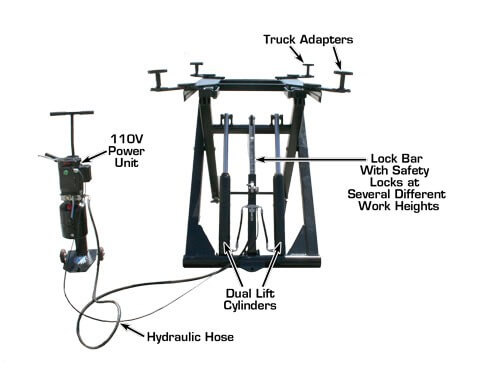

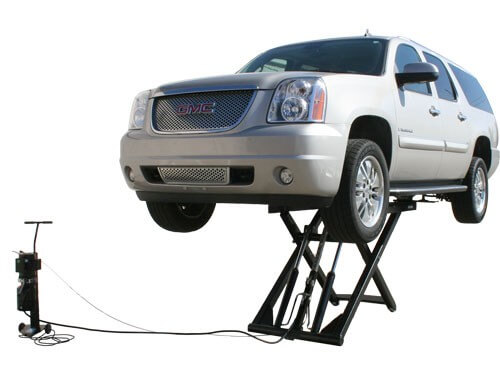

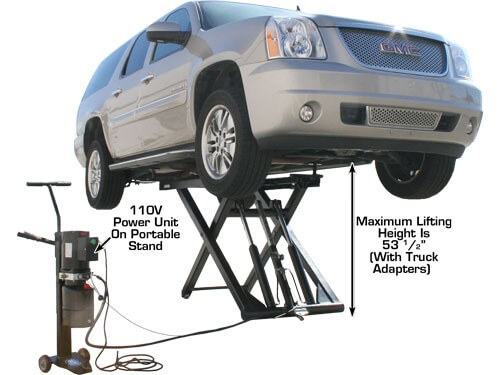

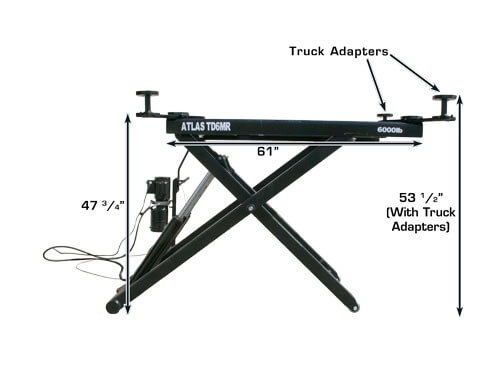

6,000 lb. Capacity Mid-Rise Scissor Lift
Shop @ ToolTopia.com: #ATEATTD6MR

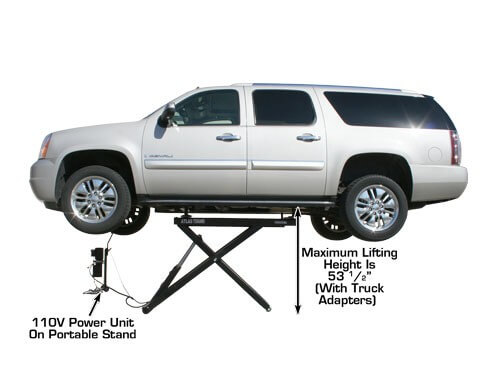

The Atlas® TD6MR is a portable mid-rise lift with several different locking positions. It is a popular choice for wheel service and body shops. There is also room for some underbody work.
- 6,000 lb. Capacity
- Powder Coated

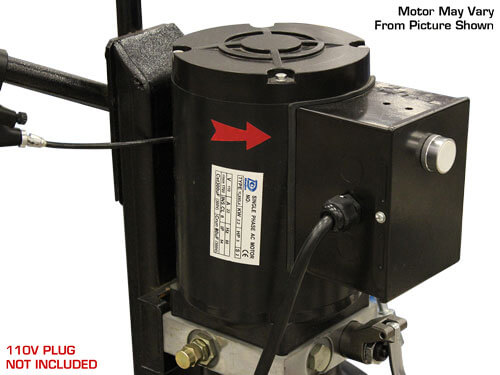

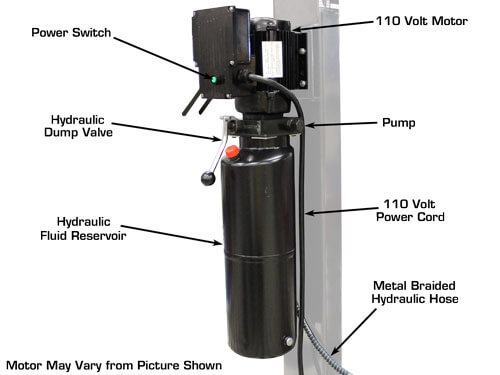

- 110 V Motor
- Single-Point Lock Release
- Commercial Grade
- Portable, Easy To Move

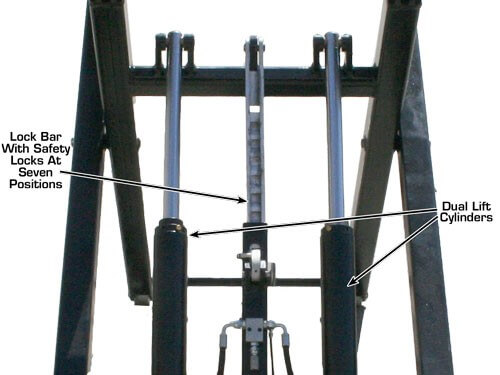

- Two Hydraulic Cylinders
- 7 Locking Positions

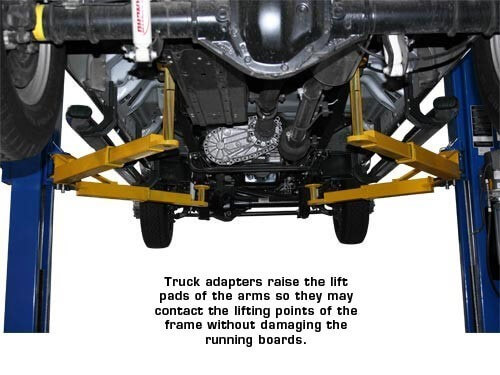

- Truck Adapters
- Free Standing
- Separate Motor Stand
- 2-Year Structural, 2-Year Hydraulic Limited Manufacturer’s Warranty

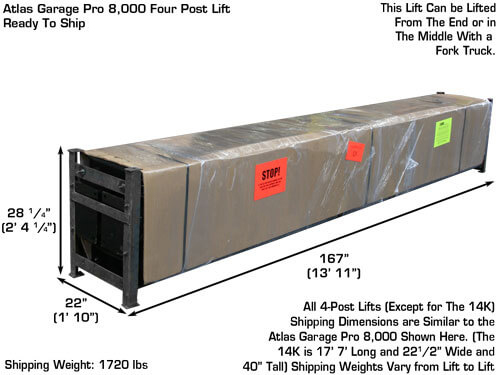

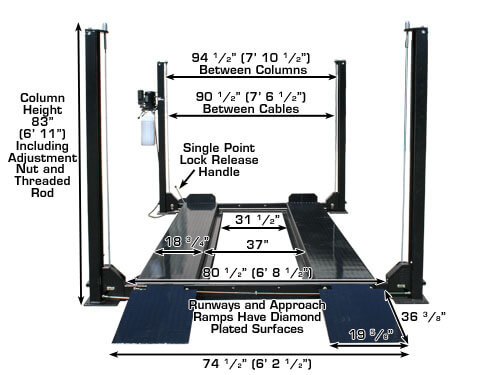

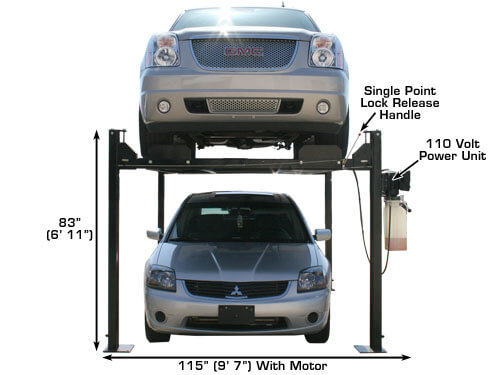

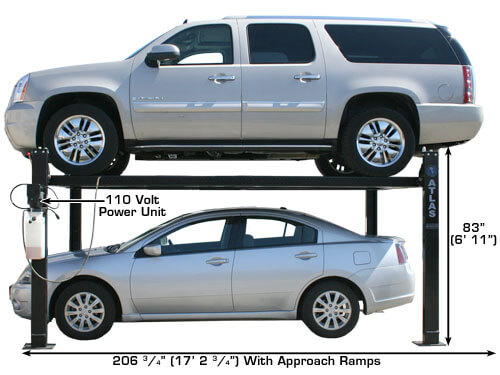

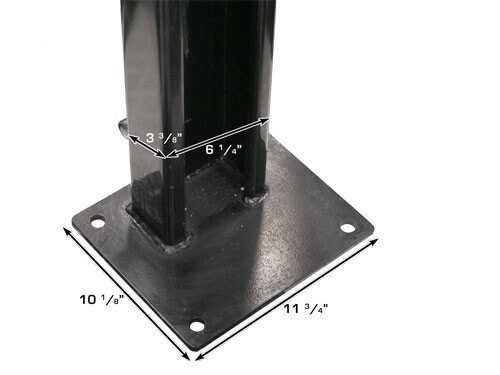

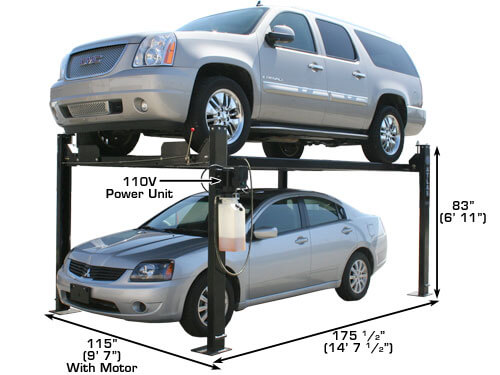

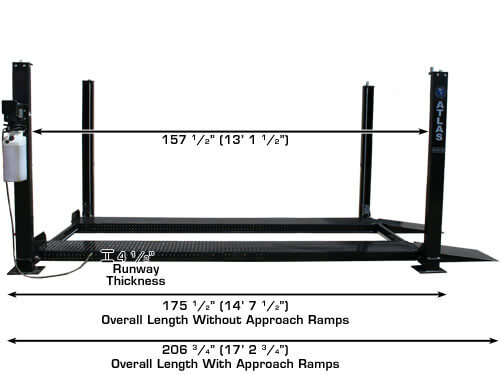

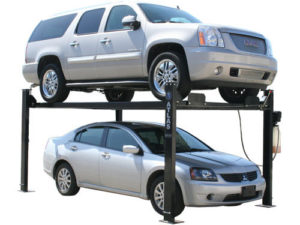

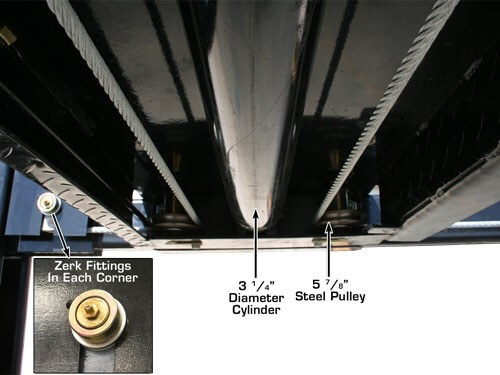

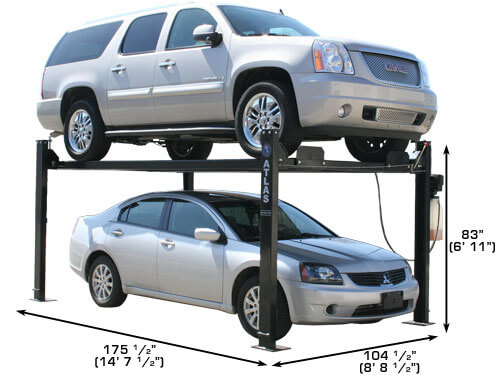

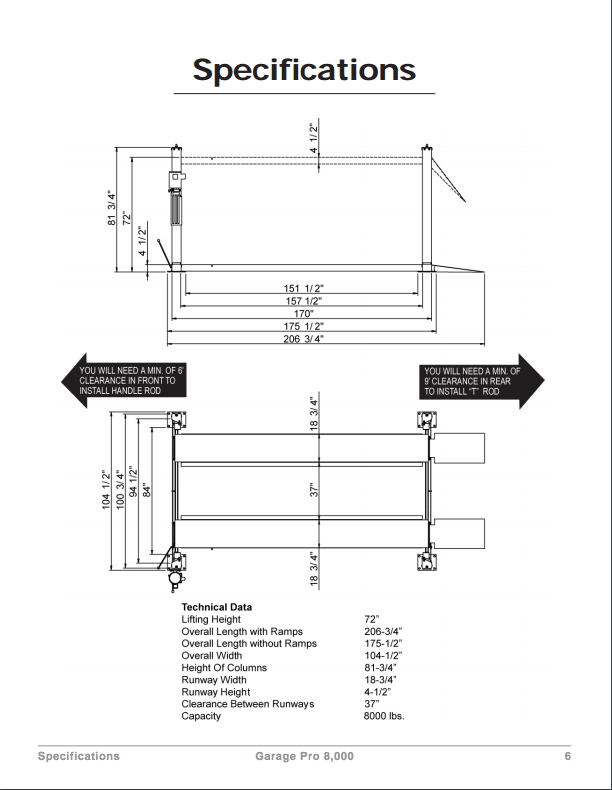

8,000 lb. Capacity 4-Post Lift
Shop @ ToolTopia.com: #ATEXHPRO8000

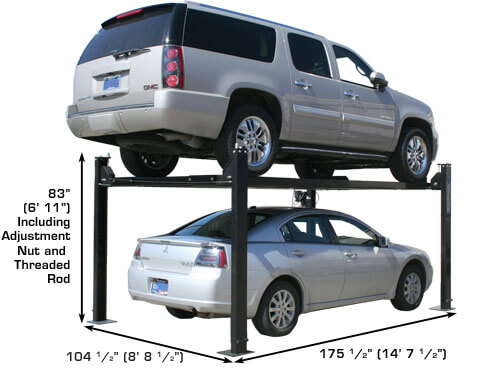

The Atlas® Garage Pro 8000 is our most popular 4-post hobbyist lift. This lift is perfect for the customer with too many cars.
- 8,000 lb. Capacity
- Powder Coated
- Diamond Plated Runways
- Single-Point Lock Release
- Caster Kit With Polyurethane Wheels

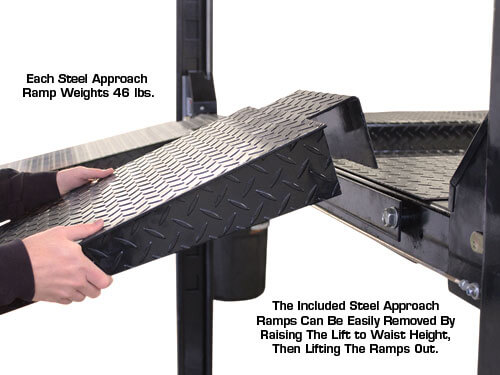

- Steel Approach Ramp

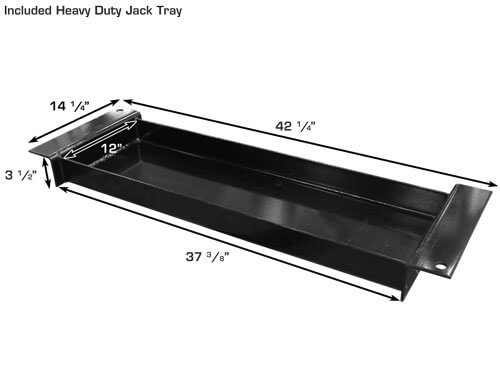

- Steel Jack Tray
- Plastic Drip Trays
- Four Wheel Stops
- Two Rubber Wheel Chocks
- Perfect For Storing Or Working On Vehicles
- 2-Year Structural, 1-Year Hydraulic Manufacturer’s Warranty

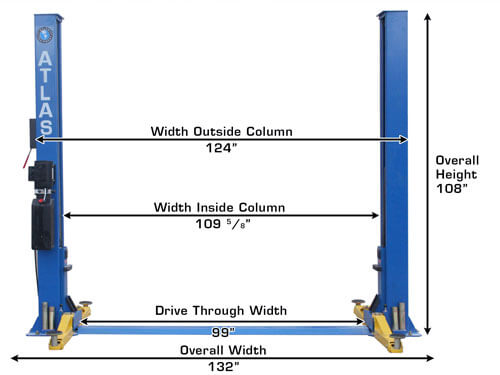

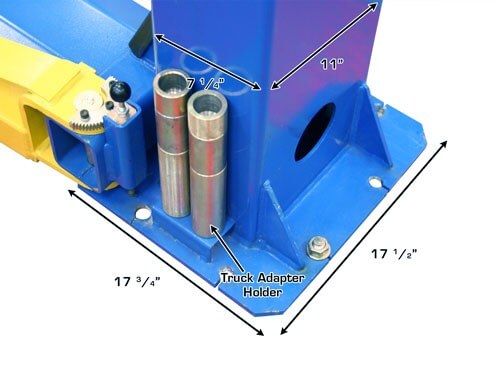

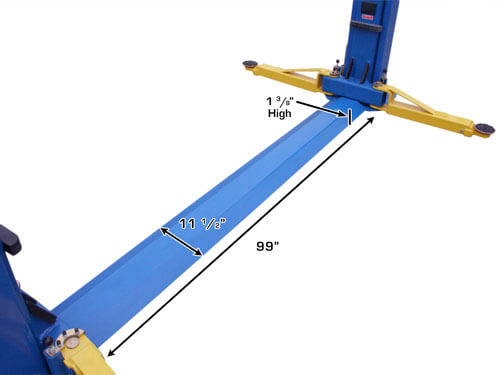

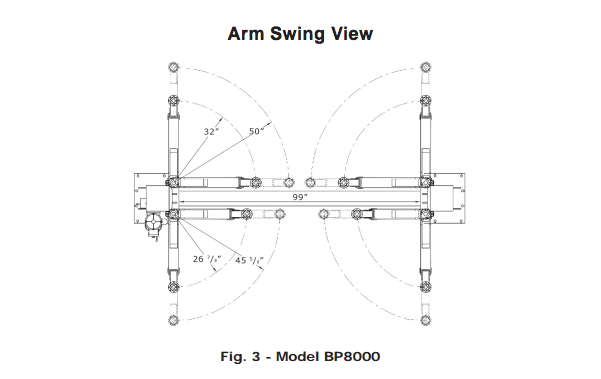

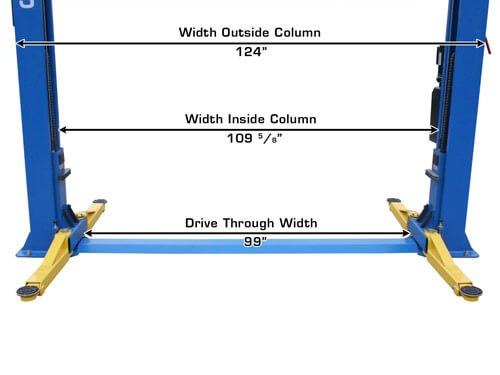

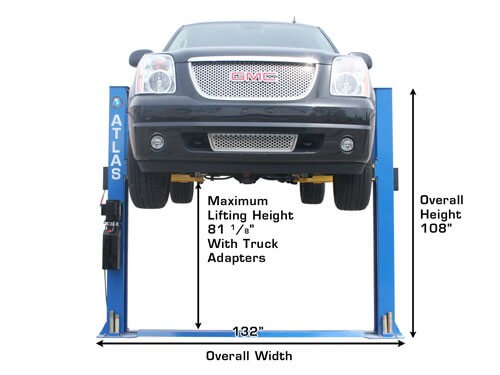

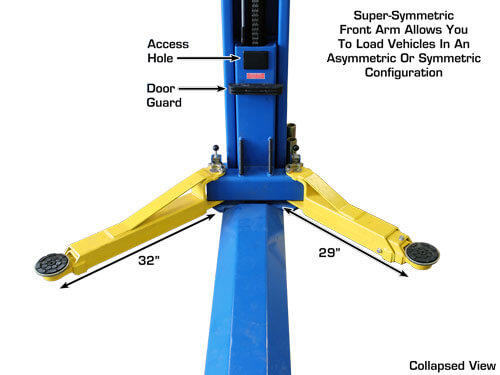

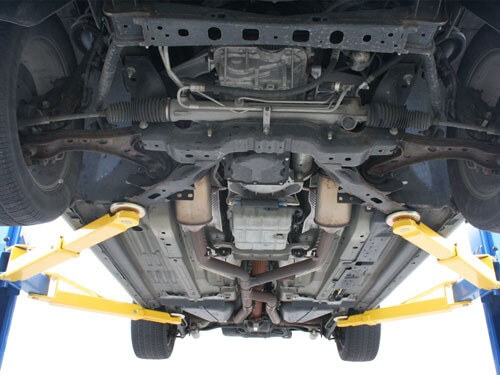

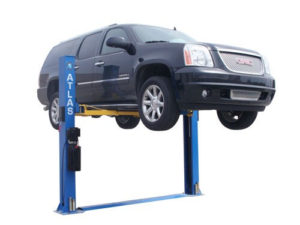

8,000 lb. Capacity Baseplate 2-Post Lift
Shop @ ToolTopia.com: #ATEATPKBP8000

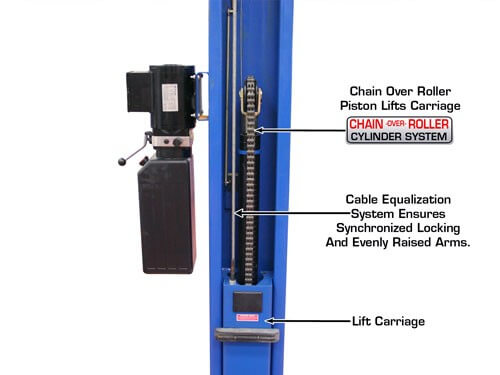

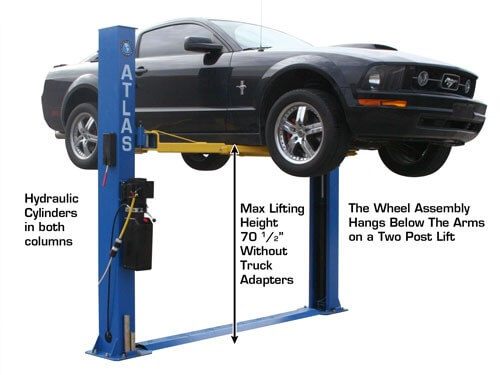

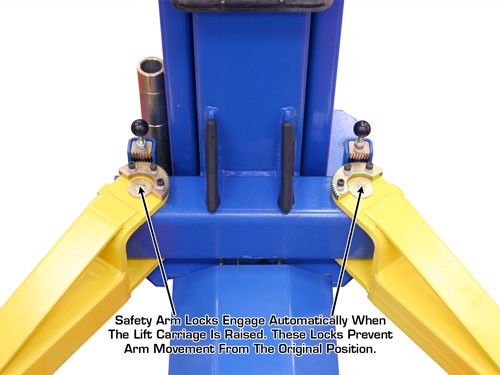

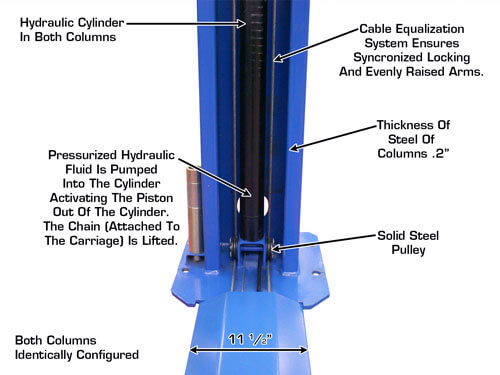

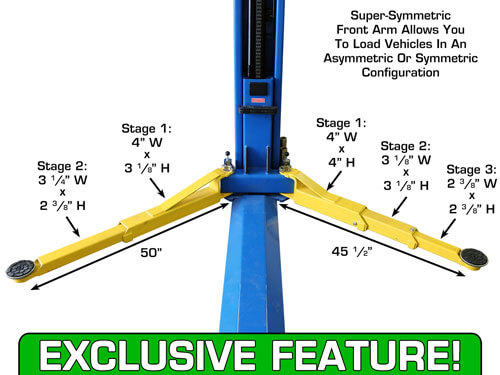

The Atlas® BP8000 is a base-plate two-post lift designed for low ceiling garages. The total column height is 108″ (9′). This lift features a single-point lock release, automatic arm restraints, symmetric arms, double safety lock system, powder coat finish, and heavy-duty dual hydraulic chain-drive cylinders (one cylinder in each column).
- 8,000 lb. Capacity
- Dual Hydraulic
- Chain-Over Cylinders
- Single-Point Lock Release
- 2-Stage Symmetric Arms

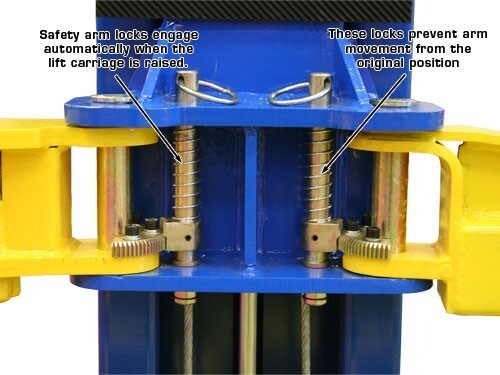

- Automatic Arm Restraints
- Base-Plate Design
- Powder Coat Finish

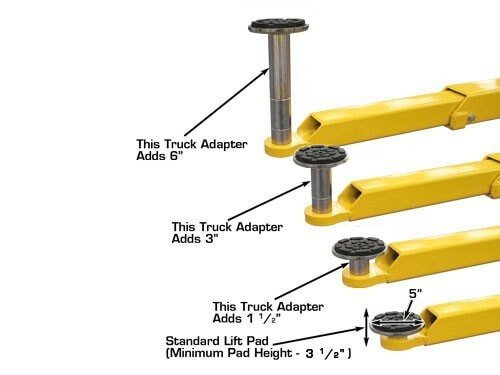

- Free Truck Adapters
- Mounting Hardware
- 5-Year Structural, 1-Year Hydraulic Manufacturer’s Warranty

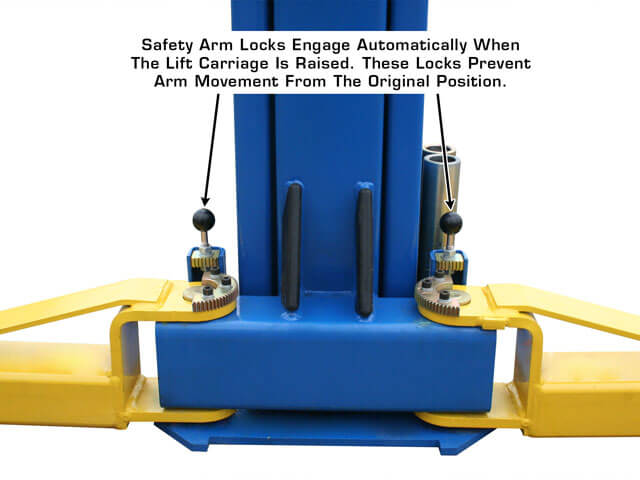

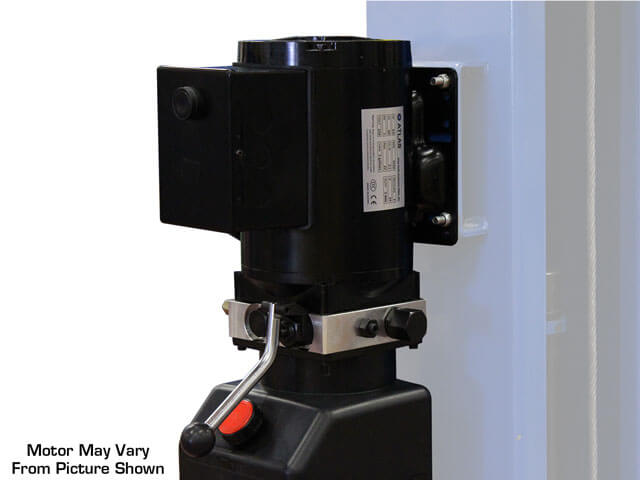

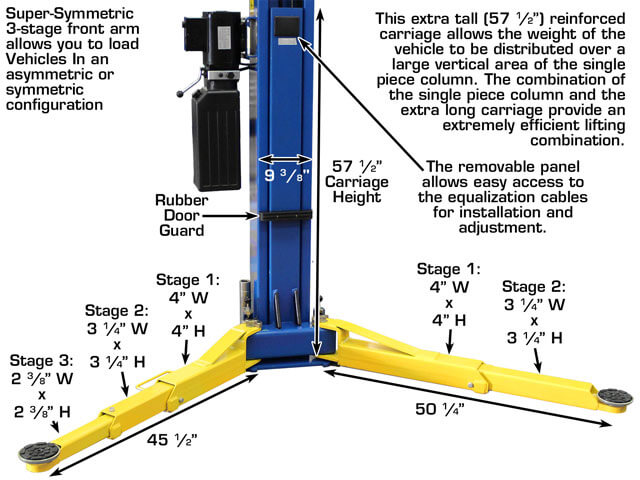

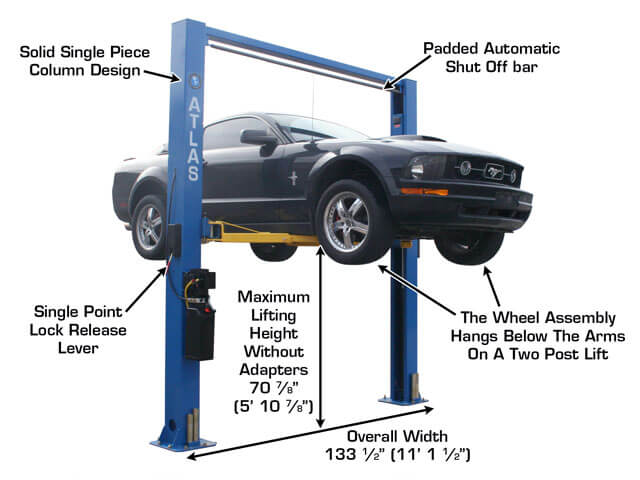

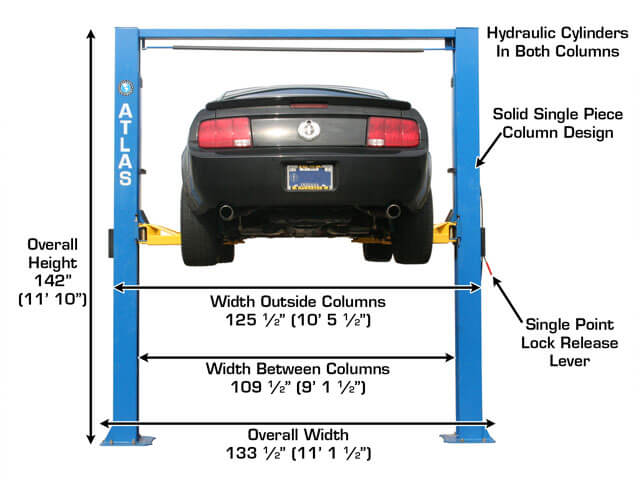

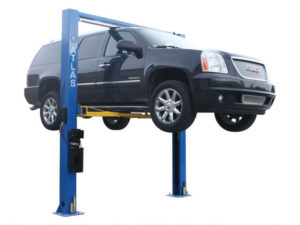

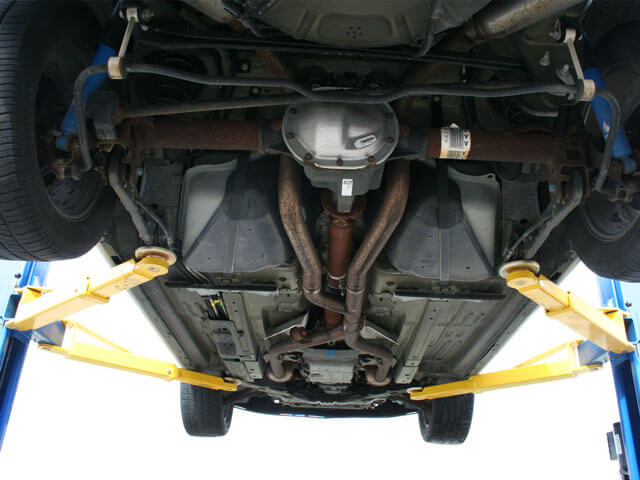

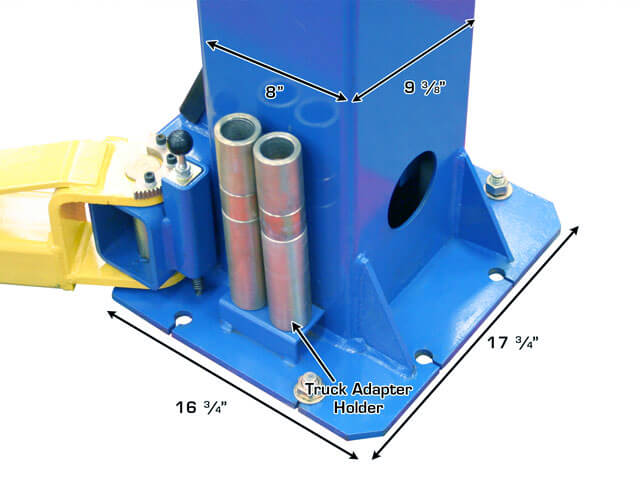

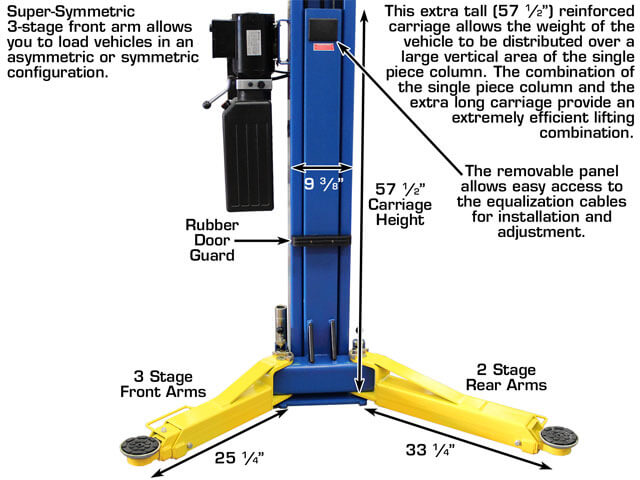

9,000 lb. Capacity Overhead 2-Post Lift
Shop @ ToolTopia.com: #ATEATPK9OHSCSS

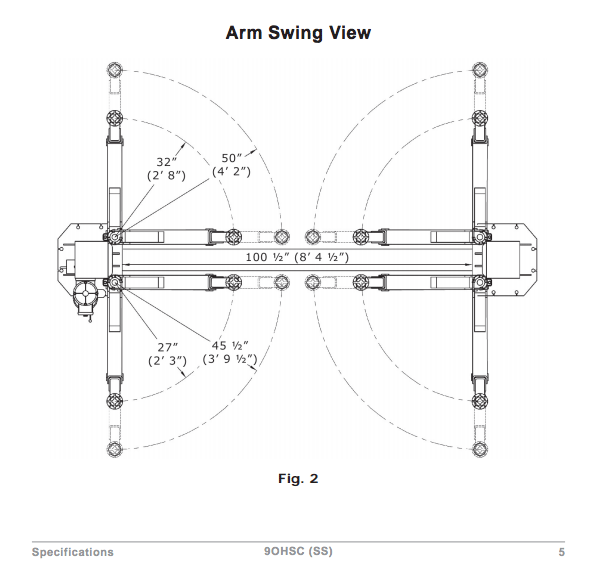

Extra Long Carriages. The Atlas® 9OHSC-SS two-post above ground lift is the perfect choice for smaller commercial repair facilities or Mr. Homeowners who demand the highest quality at the absolute best price.
- 9,000 lb. Capacity
- Light Commercial Grade
- Dual Hydraulic
- Chain-Over Cylinders
- Single Piece Columns

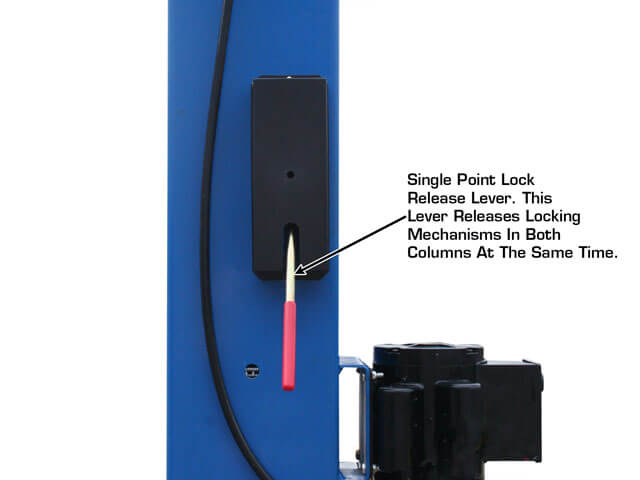

- Single-Point Lock Release
- Symmetric Columns
- 3-Stage Super-Symmetric Front Arms
- Powder Coat Finish
- Clear Floor Design

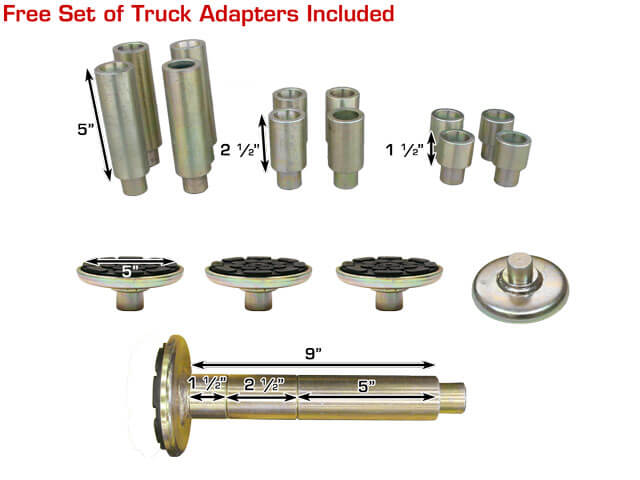

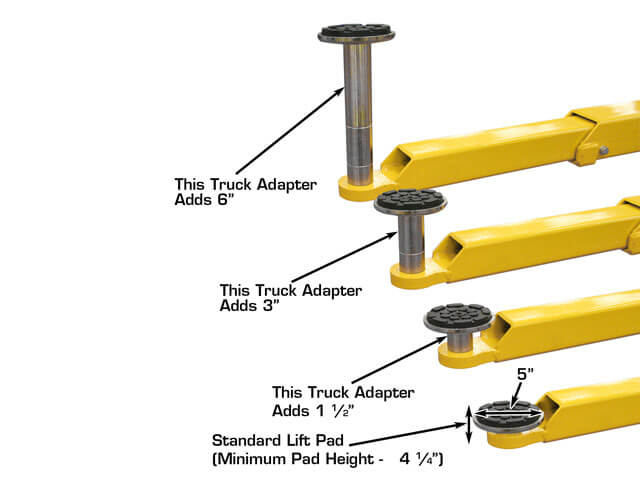

- Free Truck Adapters
- Mounting Hardware
- 5-Year Structural Manufacturer’s Warranty, 1-Year Hydraulic Manufacturer’s Warrant

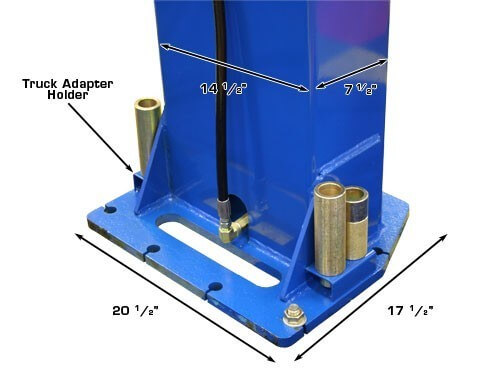

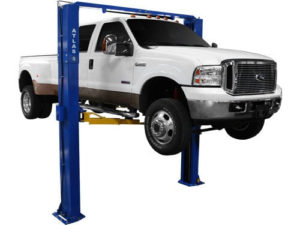

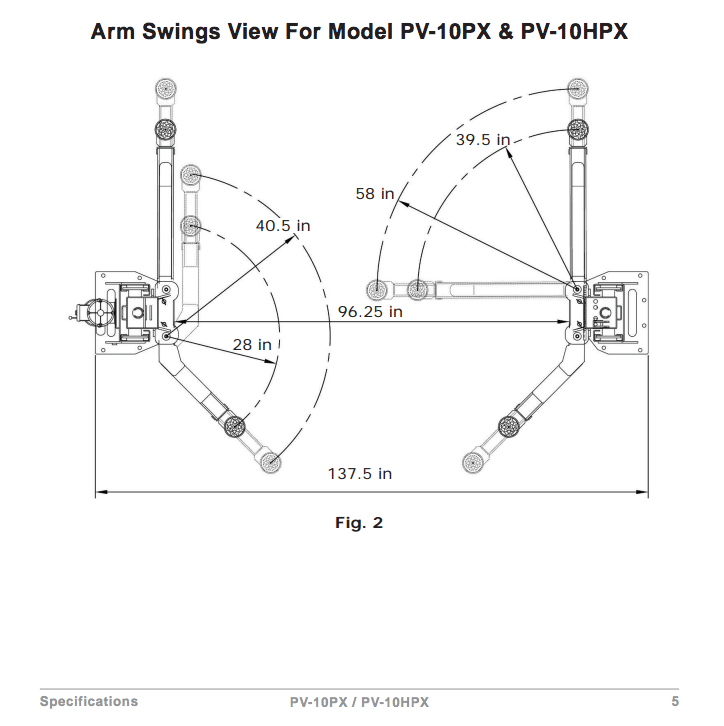

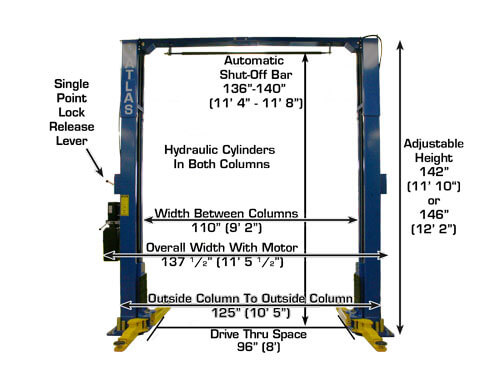

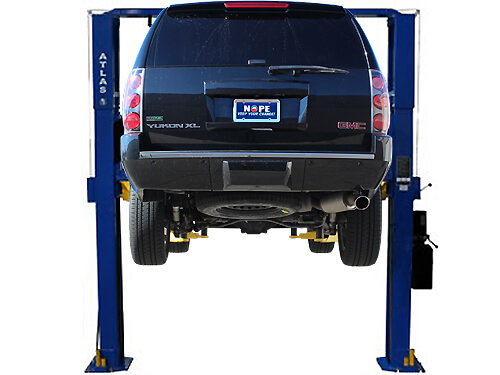

10,000 lb. Capacity Overhead 2-Post Lift, Direct Drive
Shop @ ToolTopia.com: #ATEATPKPV10PX

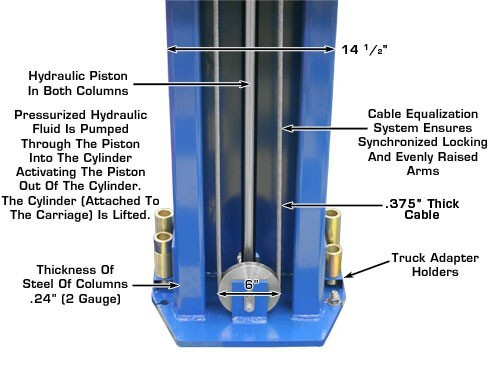

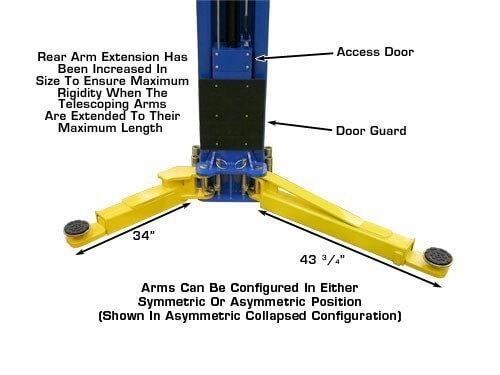

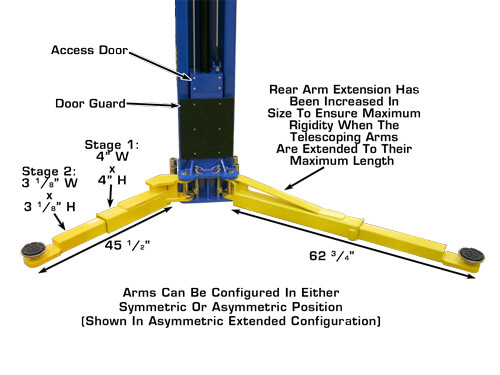

The Atlas® PV10P is a commercial grade two-post lift designed to lift a wide variety of vehicles. The PV10P has a low pad height to accommodate passenger vehicles but is built to handle full size pickups. The PV10P has dual direct drive cylinders and single-point lock release.
- Commercial Grade
- Direct Drive Cylinders

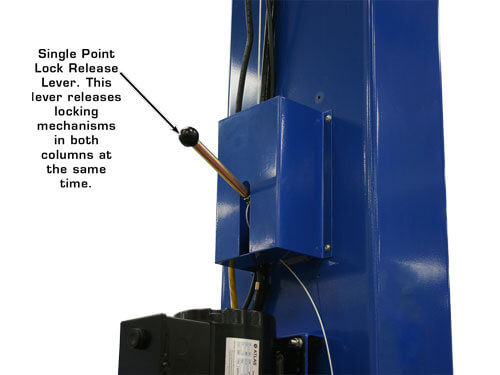

- Single-Point Lock Release

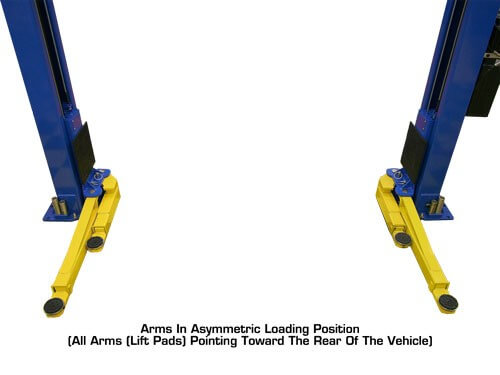

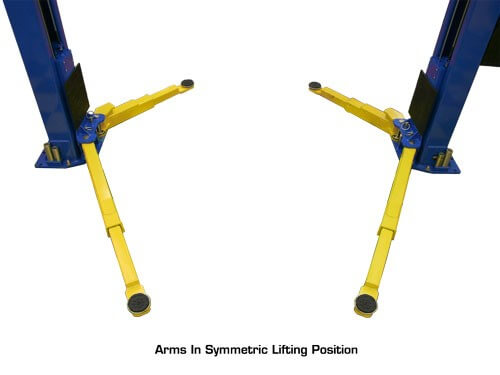

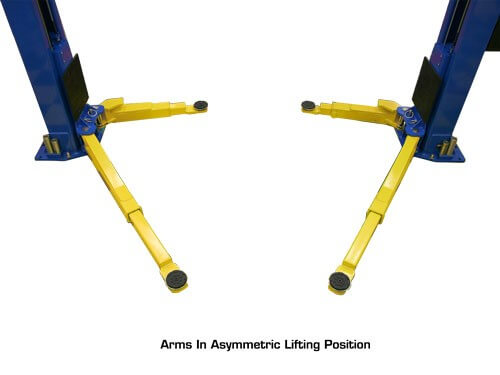

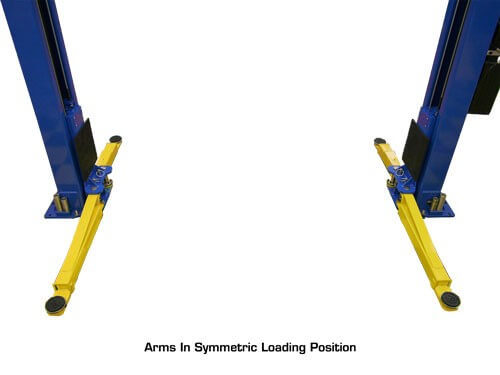

- Front Arms May Be Configured Symmetric
- Or Asymmetric
- Padded Shut-Off Bar
- Powder Coat Finish
- Adjustable Height
- Clear Floor Design

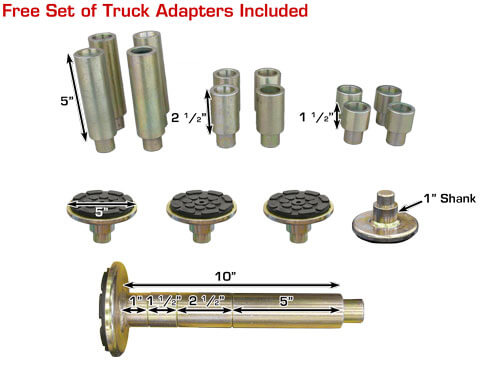

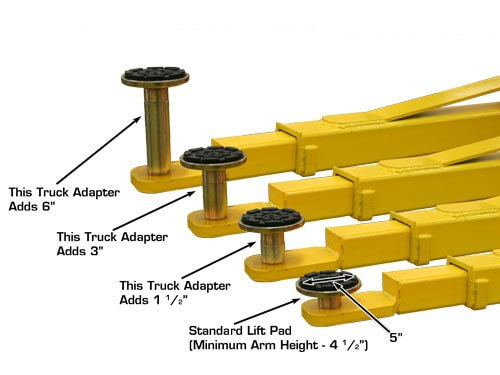

- Free Truck Adapters
- Mounting Hardware
- 5-Year Structural, 2-Year Power Unit Manufacturer’s Warranty

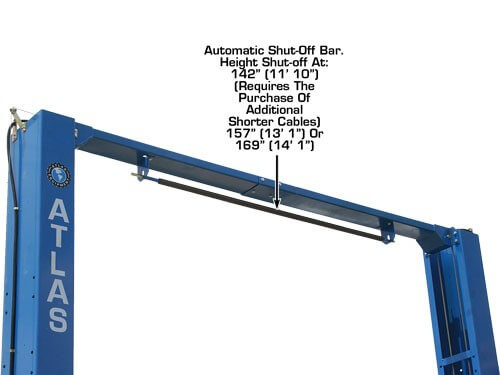

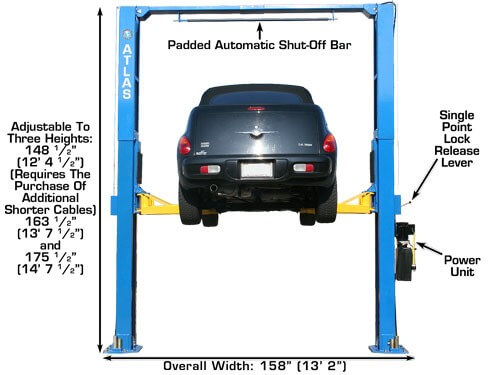

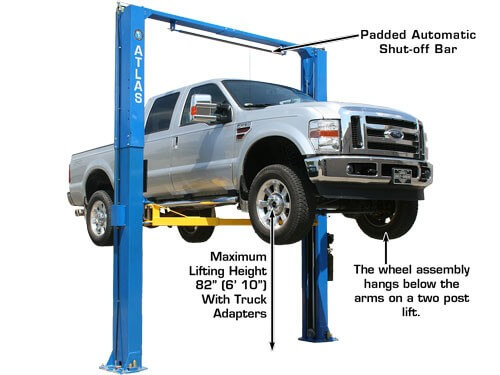

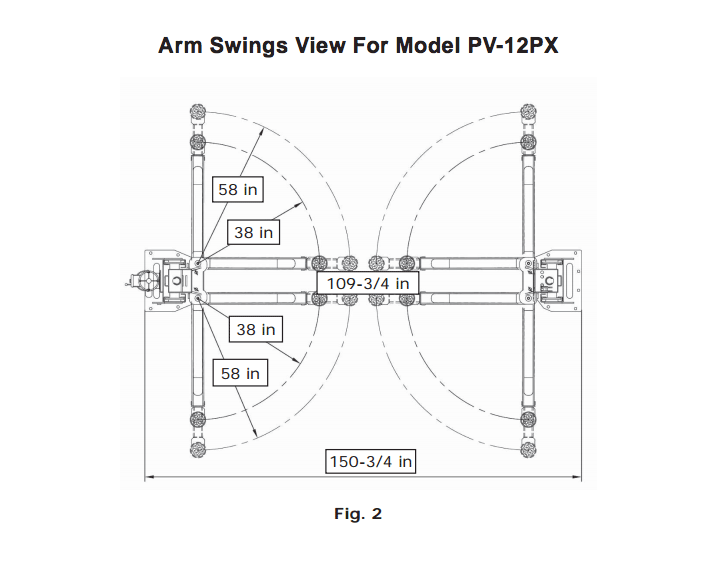

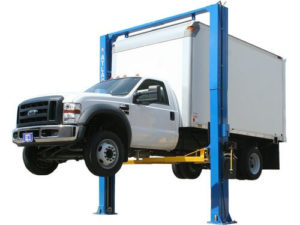

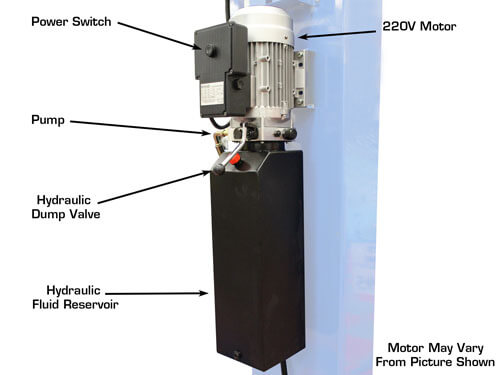

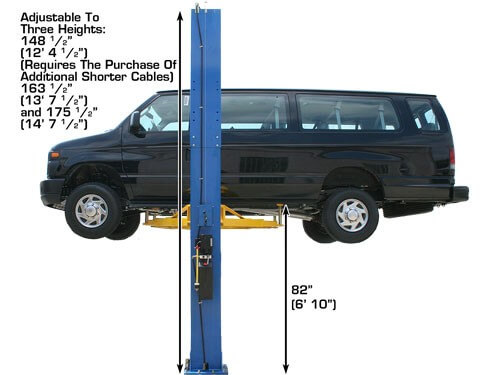

12,000 lb. Capacity, Extended Height 2-Post Lift
Shop @ ToolTopia.com: #ATEATPKPV12PX

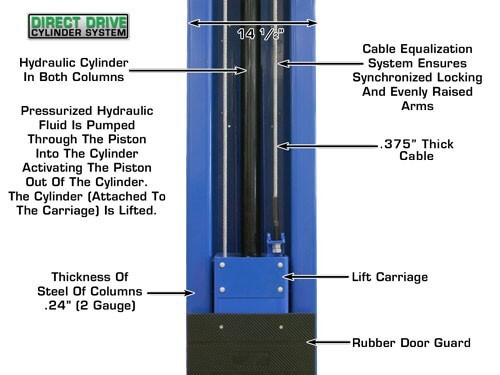

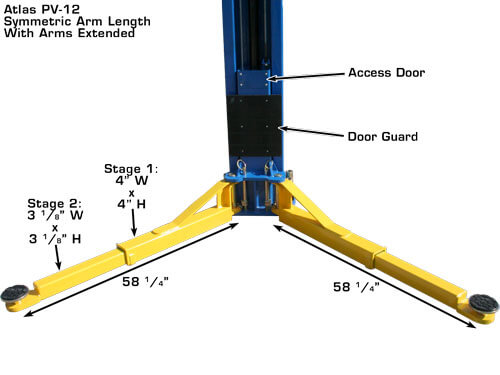

The Atlas® PV-12P is a commercial grade lift designed to accommodate long wheel base trucks. The low pad height on the PV-12P allows the operator to lift both cars and trucks. The extra distance between the columns accommodates wider vehicles or vehicles with wide rear-view mirrors. The extra height is perfect for tall vans and box trucks.
- Commercial Grade
- Direct Drive Cylinders

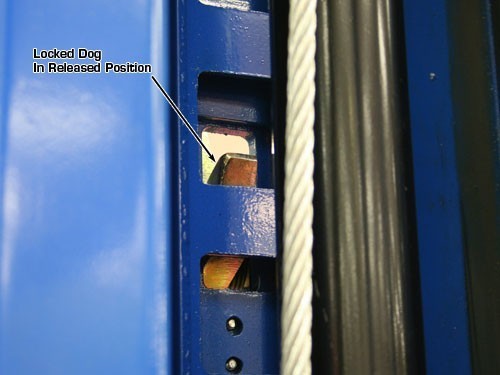

- Single-Point Lock Release
- 2-Stage Heavy Duty Symmetric Arms
- Padded Shut-Off Bar
- Powder Coat Finish
- Adjustable Height

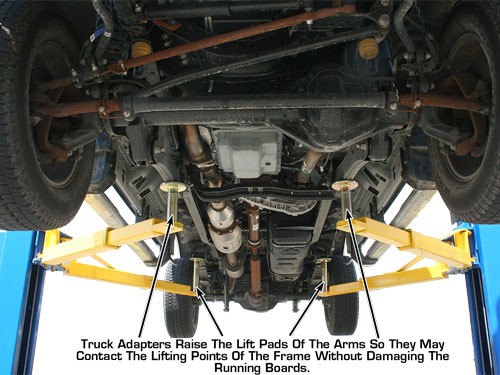

- Free Truck Adapters

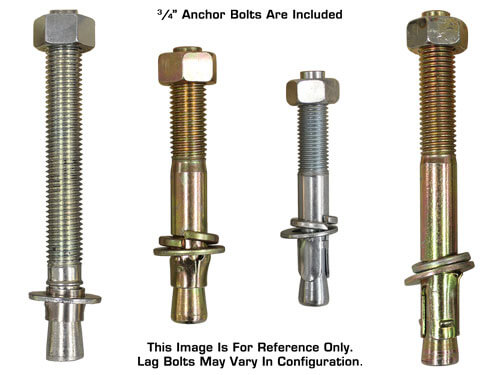

- Mounting Hardware
- 5-Year Structural, 2-Year Power Unit Manufacturer’s Warranty

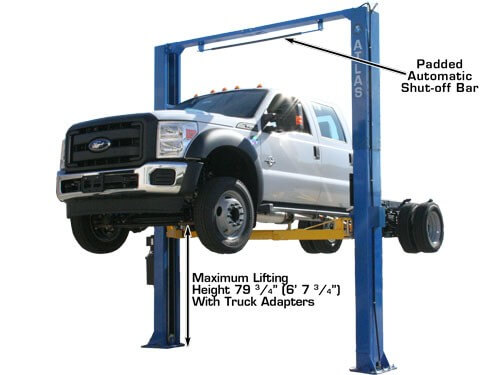

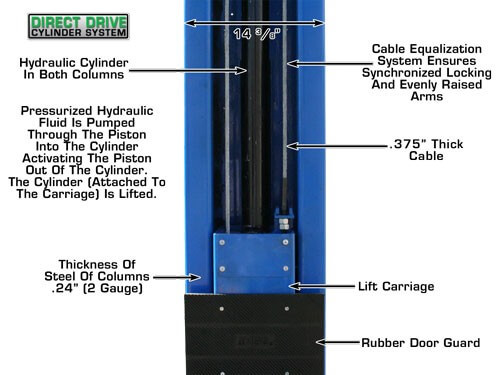

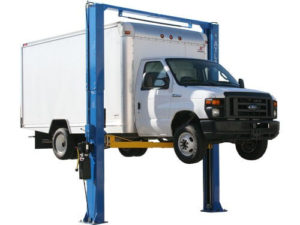

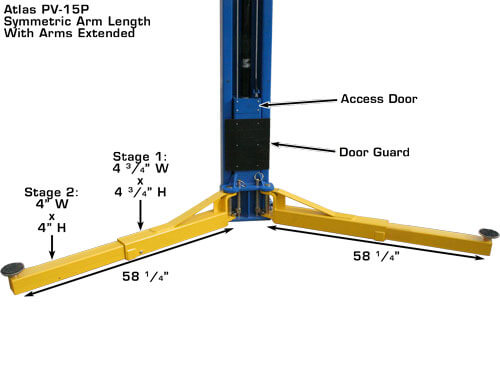

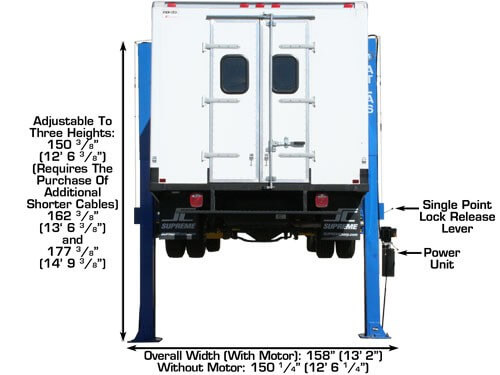

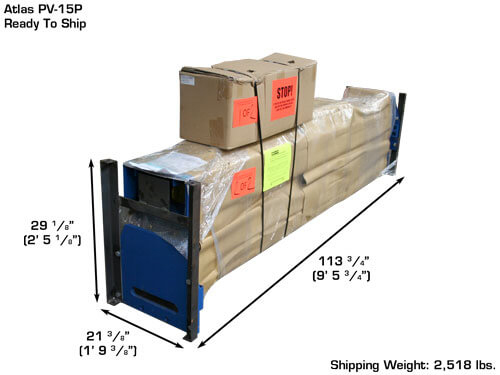

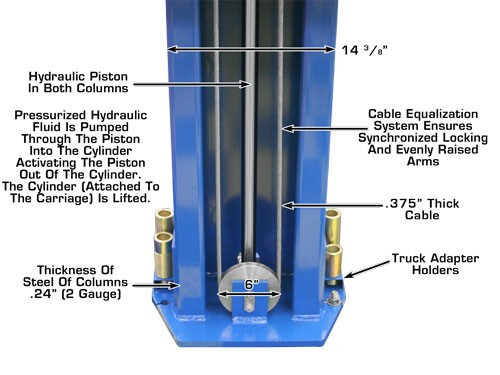

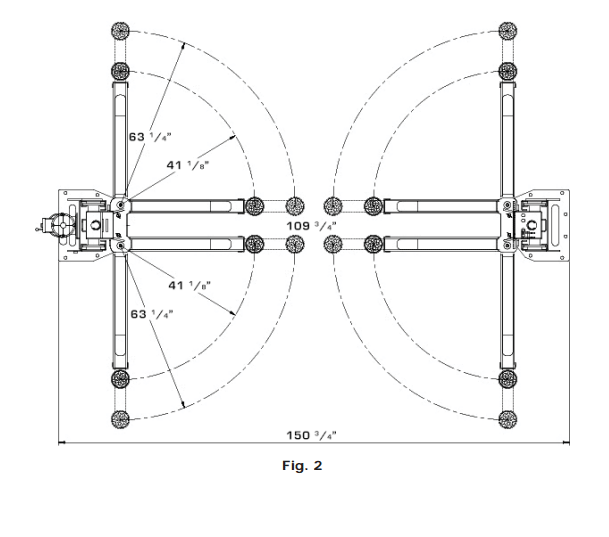

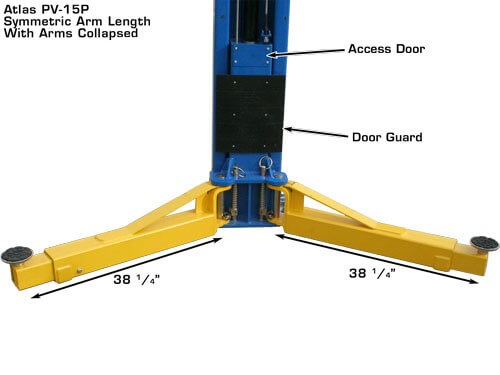

15,000 lb. Capacity Overhead 2-Post Lift
Shop @ ToolTopia.com: #ATEATPKPV15PX

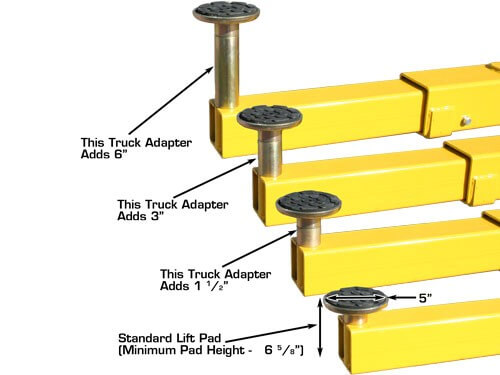

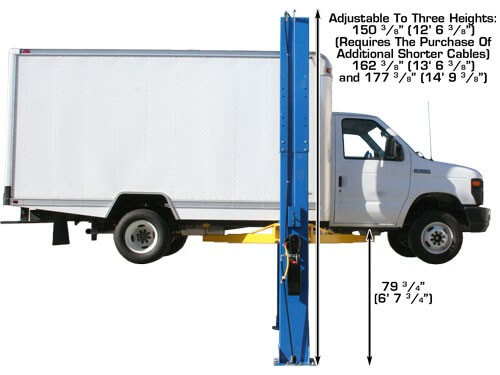

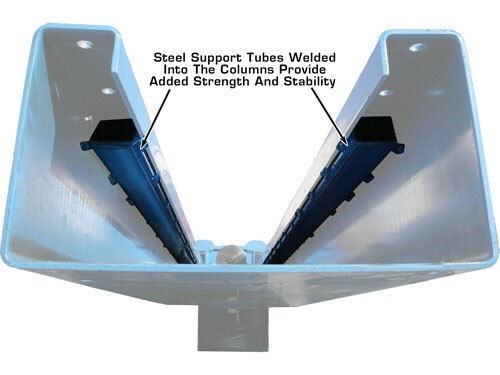

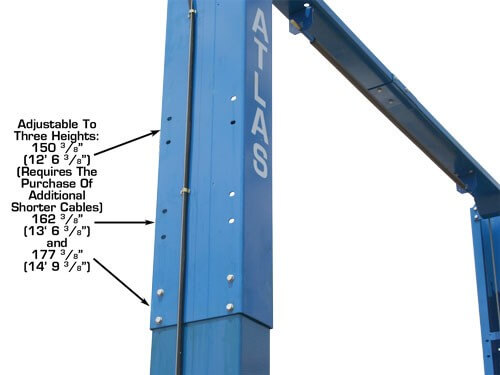

The Atlas® PV-15P is a commercial grade lift designed to accommodate long wheel base trucks. The larger arms and taller pad height on the PV-15P are designed for customers who primarily work on trucks and SUVs. The extra distance between the columns accommodates wider vehicles or vehicles with wide rear-view mirrors. The extra height is perfect for tall vans and box trucks.
- Commercial Grade
- Direct Drive Cylinders

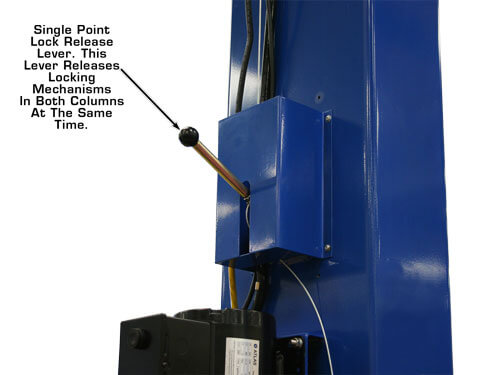

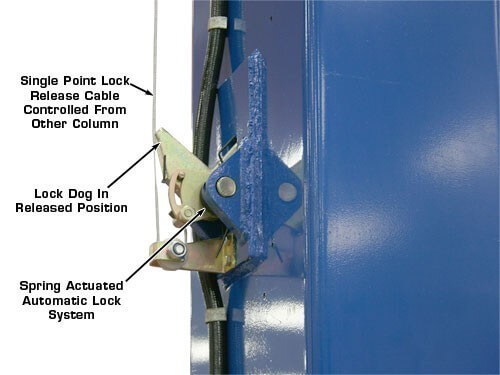

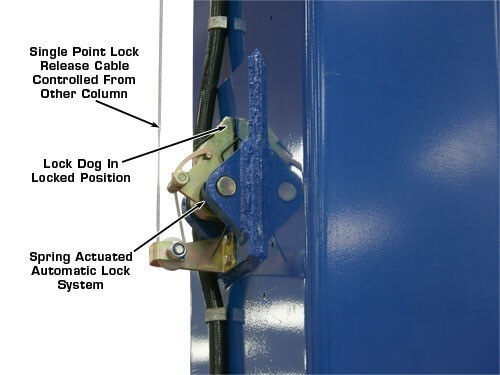

- Single-Point Lock Release
- 2-Stage Heavy Duty Symmetric Arms
- Padded Shut-Off Bar
- Powder Coat Finish
- Adjustable Height

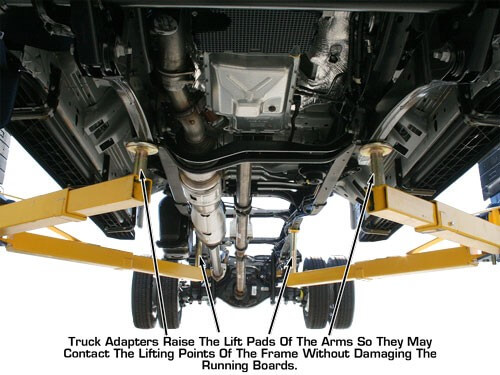

- Free Truck Adapters
- Mounting Hardware
- 5-Year Structural, 2-Year Power Unit Manufacturer’s Warranty
Product Comparison Chart – Atlas
| Model | 6,000 lb. Capacity Mid-Rise Scissor Lift | 8,000 lb. Capacity 4-Post Lift | 8,000 lb. Capacity Baseplate 2-Post Lift | 9,000 lb. Capacity Overhead 2-Post Lift | 10,000 lb. Capacity Overhead 2-Post Lift, Direct Drive | 12,000 lb. Capacity, Extended Height 2-Post Lift | 15,000 lb. Capacity Overhead 2-Post Lift |
|---|---|---|---|---|---|---|---|
| | | | | | | |
| #ATEATTD6MR | #ATEXHPRO8000 | #ATEATPKBP8000 | #ATEATPK9OHSCSS | #ATEATPKPV10PX | #ATEATPKPV12PX | #ATEATPKPV15PX | |
| Capacity | 6,000 lbs. | 8,000 lbs. | 8,000 lbs. | 9,000 lbs. | 10,000 lbs. | 12,000 lbs. | 15,000 lbs. |
| Height Info: | |||||||
| Overall Height: | 108″ (9′) | 142″ (11’ 10”) | Low 142″ (11’ 10”)
High 146″ (12’ 2”) | Low 148 1/2″ (12’ 4 1/2″)

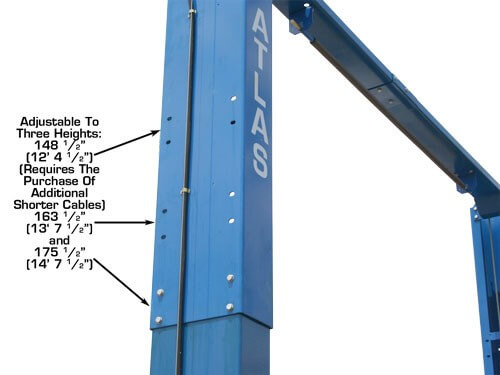

Middle 163 1/2″ (13’ 7 1/2″) High175 1/2″ (14’ 7 1/2″) | Low 150 3/8″ (12’ 6 3/8″)*
Middle 162 3/8″ (13’ 6 3/8″) High 177 3/8″ (14’ 9 3/8”) *Requires purchase of additional shorter cables | ||
| Height-Raised Maximum | 53 1/2″ (4′ 5 1/2″) | ||||||
| Lifting Height To Top Of Runway | 72″ (6′) | ||||||
| Maximum Lift Height | (Without Adapters): 70 1/2″ (5’ 10 1/2”)
(With Adapters): 81 3/8″ (6’ 9 3/8”) | (Without Adapters): 81 3/8″ (6′ 9 3/8″)
(With Adapters): 70 7/8″ (5′ 10 7/8”) | 79” (6’ 7”) | 71 1/2″ (5’ 11 1/2″)
(With Truck Adapters): 82 1/2″ (6’ 10 1/2″) | 69 1/8” (5’ 9 1/8″)
(With Truck Adapters): 79 3/4″ (6’ 7 3/4″) | ||

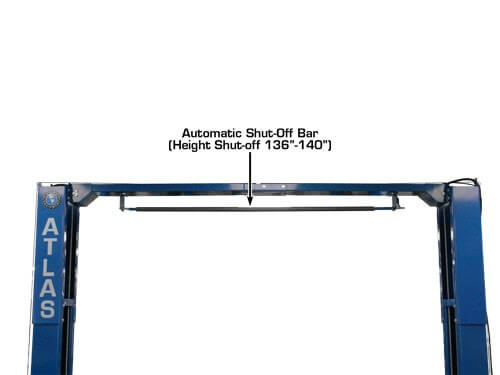

| Height Shut-Off | Low 136″ (11’ 4”)
High 140” (11’ 8″) | Low 142” (11’ 10″)*
Middle 157″ (13’ 1″) High 169″ (14’ 1″) *Requires purchase of additional shorter cables | Low 140 3/4″ (11’ 8 3/4”)*
Middle 152 3/4″ (12’ 8 3/4″) High167 3/4” (13’ 11 3/4″) *Requires purchase of additional shorter cables | ||||
| Clearance Under Runways | 67 ½” (5’ 7 ½”) | ||||||
| Height Of Columns | 83″ (6′ 11″) | ||||||
| Minimum Pad Height | 3 1/2” | 3 1/2” | 4” | 4 1/2” | 6 5/8″ | ||
| Width Info: | |||||||
| Width | 39″ (3′ 3″) | Overall Width (Without Motor): 104 1/2” (8’ 8 1/2”)
Overall Width (With Motor): 115” (9’ 7″) | Overall Floor Width: 132″ (11′) | Overall Floor Width: 134″ (11’ 2″) | Overall Floor Width: 137 3/8″ (11’ 5 3/8”) | Overall Width: 158″ (13’ 2″)
(Without Motor): 150 1/4″ (12’ 6 1/4”) | Overall Width: 158″ (13’ 2″)
(Without Motor): 150 1/4″ (12’ 6 1/4”) |
| Outside Column To Outside Column | 124″ (10′ 4″) | 125 1/2” (10’ 5 1/2”) | 125” (10’ 5″) | ||||
| Runway Width | 21 1/2” (1’ 6 1/2″) | ||||||
| Width Between Runways | 37” (3’ 1”) | ||||||
| Width Between Runway Rails | 31 1/2″ (2’ 7 1/2″) | ||||||
| Outside Runway To Outside Runway | 74 5/8” (6’ 2 5/8”) | ||||||
| Clearance Between Columns | 94 1/2″ (7’ 10 1/2″) | 109 5/8” (9’ 1 5/8″) | 109 1/2” (9’ 1 1/2″) | 110 3/4″ (9’ 2 3/4″) | 122 5/8″ (10’ 2 5/8″) | 122 7/8” (10’ 2 7/8”) | |
| Drive Thru | (Outside Of Tire To Outside Of Tire): 80 1/2” (6’ 8 1/2”) | 99” (8’ 3″) | 100 3/4” (8’ 4 3/4”) | Symmetric / Asymmetric Configuration: 96” (8’) / 90″ (7’ 6″) | 108 5/8″ (9’ 5/8″) | 109” (9’ 1”) | |
| Length Info: | |||||||
| Length | 82″ (6′ 10″) | Overall Length With Approach Ramp: 206 3/4” (17’ 2 3/4”) | |||||
| Runway Length | 165 3/4″ (13’ 9 3/4”) | ||||||
| Approach Ramp | 36 3/8” (3’ 3/8”) | ||||||
| Length Between Columns | 157 1/2” (13’ 1 1/2”) | ||||||
| Maximum Wheel Base | 153 1/2″ (12’ 9 1/2″) | ||||||
| Other Info: | |||||||
| Runway Thickness | 4 1/2” | ||||||
| Locking Positions | 7 | ||||||
| Lifting Cylinders | 2 | ||||||

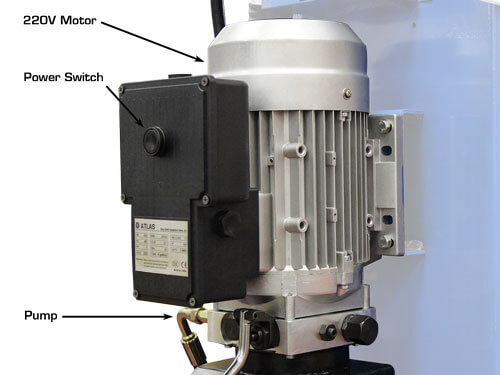

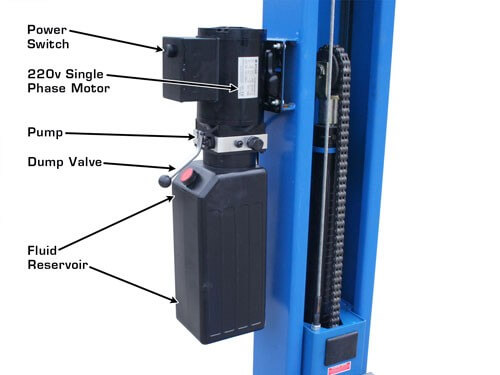

| Motor / Electrical Requirement | 110 Volt | 110 Volt | 220 Volt, Single (1) Phase; A 30 amp Breaker Is Recommended | 220 Volt, Single (1) Phase; A 30 amp Breaker Is Recommended | 220 Volt, Single Phase; A 30 amp Breaker Is Recommended. | 220 Volt, Single (1) Phase; A 30 amp Breaker Is Recommended | 220 Volt, Single (1) Phase; A 30 amp Breaker Is Recommended |

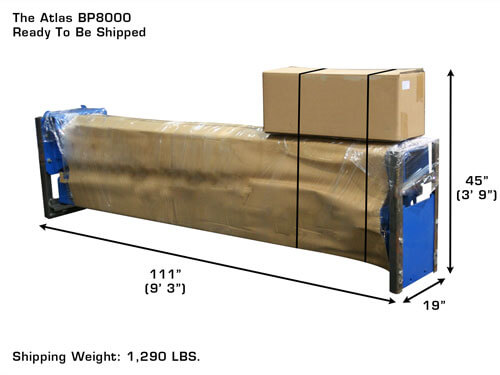

| Shipping Weight | 1,100 lbs. | 1,800 lbs. | 1,300 lbs. | 1,450 lbs. | 1,900 lbs. | 2,2500 lbs. | 2,600 lbs. |
Manufacturer Info – Atlas
The team behind the Atlas® Automotive Equipment brand has spent years developing a line of products that combine the best value of quality and price. Atlas® brand products are some of the most respected and well known in the automotive equipment Industry and can be found in many countries throughout the world.
The philosophy behind the Atlas® Brand is simple – we provide THE BEST combination of price and quality. We encourage anyone to compare the quality of our Auto Lifts, Alignment Machines,Wheel Balancers, Tire Changers and other accessories with any brand in the world. Our customer service backing is also unmatched in the Industry.
Contact: http://www.atlasautoequipment.com/ | (866) 898-2604
