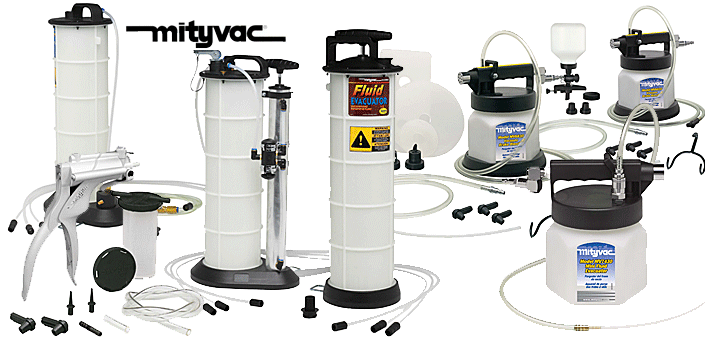

MITYVAC_BUYERSGUIDE

Brake Bleeding Tools

Brake Bleeding Kit
Shop @ ToolTopia.com: #MITMV8020

Brake Bleeding Kit Mityvac (MITMV8020)

The original Selectline hand vacuum pump and all accessories necessary to perform one-person brake bleeding on automobiles, motorcycles, ATVs, snowmobiles, etc. Also works great for siphoning or transferring fluids from tanks and reservoirs.

FEATURES:

  • Convenient manual operation
  • 4.5 oz. (135 ml) fluid reservoir bottle
  • Kit includes everything for performing one-person brake & hydraulic clutch bleeding
  • Comfortable ergonomic handle design
  • One-finger lever vacuum release
  • Field serviceable, service parts & kits available
  • Adjustable Height
  • Brake & hydraulic clutch bleeding
  • Fluid transfer, evacuation & sampling
  • 5-Year Structural, 2-Year Power Unit Manufacturer’s Warranty

SPECIFICATIONS:

  • Packaged Weight: 12.8 oz (360 g)
  • Packaged Size: 10 1/4″ x 7 1/2″ x 2 1/4″
  • Pump Displacement: 1 cu. in. (16 cc) per stroke
  • Max. Vacuum: 25 in. Hg (85 kPa)

INCLUDES:

  • Selectline hand vacuum/pressure pump (Model No. MV8030)
  • 4.5 oz. (135 ml) fluid reservoir bottle with fluid transfer & storage lids
  • (2) Tapered bleed screw adapters
  • (2) Universal bleed screw adapters
  • 1/4″ ID x 1 1/2″ long connection tube
  • 1/4″ ID x 24″ long connection tube
  • User manual (English/French/Spanish)

Vacuum Brake Bleeder
Shop @ ToolTopia.com: #MITMV6830

Brake Bleeding Kit Mityvac (MITMV8020)

The compressed-air-operated MV6830 offers professional grade brake and clutch bleeding performance. This compact yet powerful unit bleeds up to 2 quarts (1.9 liters) per minute, and its simple operation allows clean, quick bleeding of brake and clutch lines. Kit includes an advanced selection of accessories that ensure maximum convenience and performance for greater productivity.

FEATURES:

  • Compressed air operation
  • Integrated 1.9 gallon (7.3 liter) capacity reservoir
  • Variable control thumb throttle
  • Swivel air inlet with quick disconnect
  • Quick disconnect coupler for accessories
  • Quiet, muffled exhaust
  • Automatic overflow prevention

SPECIFICATIONS:

  • Reservoir capacity: 1.9 gallons (7.3 liters)
  • Working Pressure: 60 – 150 psi (4.1 – 10.3 bar)
  • Vacuum @ 90 psi (6.2 bar): 26 in. Hg (88 kPa)
  • Air Consumption @ 90 psi (6.2 bar): 4.3 cfm (2.0 l/s)
  • Flow Rate @ 60 psi (4.1 bar): 50 oz/min (1460 ml/min)
  • Flow Rate @ 90 psi (6.2 bar): 70 oz/min (2100 ml/min)
  • Flow Rate @ 150 psi (10.3 bar): 70 oz/min (2100 ml/min)
  • Inlet Thread Size: 1/4″ NPT
  • Packaged weight: 5.0 lbs. (2.3 kg)
  • Size: 9″ tall x 6.5″ dia.

INCLUDES:

  • Brake bleeder
  • 6′ (1.8 m) long bleed hose assembly
  • 4′ (1.2 m) long fluid evacuation hose
  • Molded base with screws for bench mounting
  • Automatic fluid refill kit
  • Hanging hook
  • 3 Universal bleed screw adapters
  • User Manual (English/French/Spanish/German)

Vacuum Brake Bleeding Kit
Shop @ ToolTopia.com: #MITMV6835

Vacuum Brake Bleeding Kit Mityvac (MITMV6835)

Model MV6835 extends the capabilities of our MV6830 vacuum brake bleeder by including our MVA6832 Clamp-on Auto-refill Kit. While the bleeder can evacuate up to 2 quarts (2 liters) per minute, the refill kit ensures the master cylinder does not run dry of new fluid, making this kit an extremely efficient method of bleeding hydraulic brake and clutch systems.

FEATURES:

  • Compressed air operation
  • Integrated 1.9 gallon (7.3 liter) capacity reservoir
  • Variable control thumb throttle
  • Swivel air inlet with quick disconnect
  • Automatically maintains fluid level in master cylinder
  • Two refill kit styles ensure a fit to all makes & models of vehicles

SPECIFICATIONS:

  • Bleeder Reservoir Capacity: 1.9 quarts (1.8 liters)
  • Refill Reservoir Capacity: 40 oz (1.2 liters)
  • Working Pressure: 60 – 150 psi (4.1- 10.3 bar)
  • Vacuum @ 90 psi (6.2 bar): 26 in. Hg (88 kPa)
  • Air Consumption @ 90 psi (6.2 bar): 4.3 cfm (2.0 l/s)
  • Flow Rate @ 60 psi (4.1 bar): 50 oz/min (1460 ml/min)
  • Flow Rate @ 90 psi (6.2 bar): 70 oz/min (2100 ml/min)
  • Flow Rate @ 150 psi (10.3 bar): 70 oz/min (2100 ml/min)
  • Inlet Thread Size: 1⁄4″ NPT
  • Packaged Weight: 5.1 lbs (2.3 kg)
  • Size: 11.5″ wide x 10.8″ tall x 8.8″ deep

INCLUDES:

  • Brake bleeder
  • 6′ (1.8 m) long bleed hose assembly
  • 4′ (1.2 m) long fluid evacuation hose
  • Molded base with screws for bench mounting
  • Hanging hook
  • 3 Universal bleed screw adapters
  • Clamp-on style auto-refill kit (MVA6832)
  • User Manual (English/French/Spanish/German)

Fluid Evacuation Tools

Mini Fluid Evacuator
Shop @ ToolTopia.com: #MITMV7430

Mini Fluid Evacuator Mityvac (MITMV7430)

Operates on compressed air to create a powerful venturi vacuum for quickly evacuating small reservoirs. The lid unthreads for convenient emptying, and the evacuation hose is perfect for getting into those hard to reach places.

FEATURES:

  • Compressed air operation
  • Integrated 1.9 quart (1.8 liter) capacity reservoir
  • Variable control thumb throttle
  • Swivel air inlet
  • Quiet, muffled exhaust
  • Automatic overflow prevention

SPECIFICATIONS:

  • Reservoir capacity: 1.9 quarts (1.8 liters)
  • Working Pressure: 60 – 150 psi (4.1 – 10.3 bar)
  • Vacuum @ 90 psi (6.2 bar): 26 in. Hg (88 kPa)
  • Air Consumption @ 90 psi (6.2 bar): 4.3 cfm (2.0 l/s)
  • Flow Rate @ 60 psi (4.1 bar): 50 oz/min (1460 ml/min)
  • Flow Rate @ 90 psi (6.2 bar): 70 oz/min (2100 ml/min)
  • Flow Rate @ 150 psi (10.3 bar): 70 oz/min (2100 ml/min)
  • Inlet Thread Size: 1/4 ” NPT
  • Packaged Weight: 4.8 lbs. (2.2 kg)
  • Size: 9″ tall x 6.5″ dia.

INCLUDES:

  • Fluid evacuator/dispenser
  • 4 ft (1.2 m) fluid evacuation hose
  • Molded base w/ screws for bench mounting
  • Hanging hook
  • User’s manual

Fluid Evacuator
Shop @ ToolTopia.com: #MIT7400

Fluid Evacuator Mityvac (MIT7400)

Vacuum is created quickly and efficiently by manual pump operation, offering superior mobility by eliminating the need for electricity or compressed air. The 07400 is ideal for draining fluids from reservoirs on boats, RVs, ATVs, snowmobiles, farm equipment or motorcycles. Includes accessories for draining engine oil or transmission fluid directly through the dipstick tubes.

FEATURES:

  • Convenient manual pump operation
  • Integrated 1.9 gallon (7.3 liter) capacity reservoir
  • Large base with foot stabilizer
  • Durable, chemical resistant polyethylene construction
  • Automatic overflow prevention
  • Quick-drain pour spout

SPECIFICATIONS:

  • Reservoir capacity: 1.9 gallons (7.3 liters)
  • Max. operating temperature: 175°F (80°C)
  • Packaged weight: 7.5 lbs (3.4 kg)
  • Size: 25″ tall x 7.5″ dia.

INCLUDES:

  • Fluid evacuator/dispenser
  • 0.23″ OD x 5′ long (5.7 mm OD x 1.5 m long) dipstick tube
  • 0.26″ OD x 5′ long (6.6 mm OD x 1.5 m long) dipstick tube
  • 0.41″ OD x 5′ long (10 mm OD x 1.5 m long) main evacuation tube
  • Tube adapters
  • User’s manual

The Fluid Evacuator Plus
Shop @ ToolTopia.com: #MIT7201

The Fluid Evacuator Plus Mityvac (MIT7201)

At the push of a button, this versatile unit changes from vacuum to pressure for evacuating or dispensing fluids. This functionality makes it ideal for draining tanks or reservoirs then pumping the used fluid back out for easy disposal. Multiple units work great, simply evacuate used fluids with one unit, and then quickly refill with new fluid from a second. For superior mobility, the 07201 utilizes a manual pump, so compressed air or electricity is not required. Accessories are included for draining engine oil or transmission fluid directly through the dipstick tubes.

FEATURES:

  • Convenient manual pump operation
  • Integrated 2.3 gallon (8.8 liter) capacity reservoir
  • Large base with foot stabilizer
  • Durable, chemical resistant polyethylene construction
  • Automatic overflow prevention
  • Quick-drain pour spout
  • Evacuates or dispenses at the push of a button

SPECIFICATIONS:

  • Reservoir capacity: 2.3 gallons (8.8 liters)
  • Max. operating temperature: 175°F (80°C)
  • Packaged weight: 10.0 lbs (4.5 kg)
  • Size: 24″ tall x 12.4″ wide x 9.3″ deep

INCLUDES:

  • Fluid evacuator/dispenser
  • 0.23″ OD x 5′ long (5.7 mm OD x 1.5 m long) dipstick tube
  • 0.26″ OD x 5′ long (6.6 mm OD x 1.5 m long) dipstick tube
  • 0.41″ OD x 5′ long (10 mm OD x 1.5 m long) main evacuation tube
  • Tube adapters
  • User’s manual

PneumatiVac Fluid Evacuator
Shop @ ToolTopia.com: #MITMV7300

PneumatiVac Fluid Evacuator Mityvac (MITMV7300)

Operates on compressed air to create a powerful venturi vacuum for draining fluids from tanks and reservoirs. Compressed air hose attaches at base for stability. Includes accessories for draining engine oil or transmission fluid directly through the dipstick tubes. Also includes brake/clutch bleeding kit (Model No. 07205) for vacuum bleeding hydraulic brake and clutch systems.

FEATURES:

  • Operates on compressed air
  • Integrated 2.3 gallon (8.8 liter) capacity reservoir
  • Large base with foot stabilizer
  • Durable, chemical resistant polyethylene construction
  • Independent air shut-off valve
  • Quiet, muffled exhaust
  • Automatic overflow prevention
  • Quick-drain pour spout

SPECIFICATIONS:

  • Reservoir capacity: 2.3 gallons (8.8 liters)
  • Max. operating temperature: 175°F (80°C)
  • Packaged weight: 7.5 lbs (3.4 kg)
  • Size: 24″ tall x 12.4″ wide x 9.3″ deep

INCLUDES:

  • Fluid evacuator/dispenser
  • 0.23″ OD x 5′ long (5.7 mm OD x 1.5 m long) dipstick tube
  • 0.26″ OD x 5′ long (6.6 mm OD x 1.5 m long) dipstick tube
  • 0.41″ OD x 5′ long (10 mm OD x 1.5 m long) main evacuation tube
  • Brake/clutch bleeding adapter kit (Model No. 07205)
  • Tube adapters
  • User’s manual
